Impact of Adjacent Variable Modification

Impact of Adjacent Variable Modification by Multiple Threads #

False sharing occurs when multiple threads modify adjacent data stored in memory, leading to performance degradation due to unnecessary cache invalidations. In modern multi-core systems, where cache coherence protocols are crucial, minimizing false sharing becomes critical for optimizing performance in multithreaded applications.

Cache Line Contention: Visual Representation #

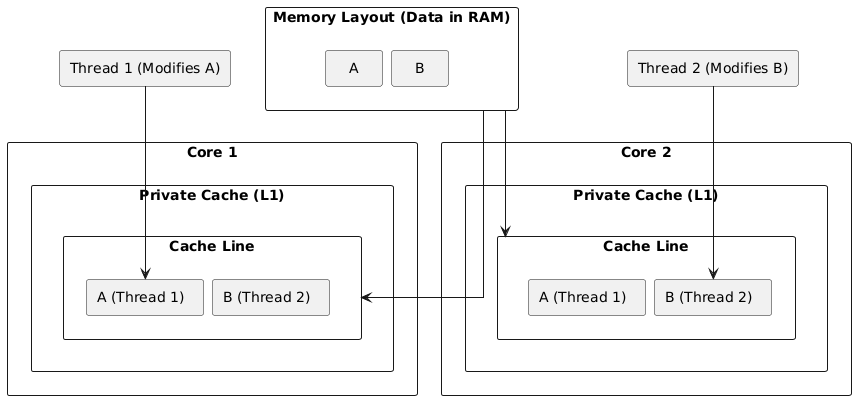

False Sharing in Adjacent Data

In this diagram, Variable A and Variable B are stored in the same cache line, causing both cores to continuously invalidate each other’s cache when either variable is updated.

#include <iostream>
#include <thread>
const int NUM_ITER = 10000000;

int a = 0; // Modified by Thread 1
int b = 0; // Modified by Thread 2

void threadFunc1() {
    for (int i = 0; i < NUM_ITER; ++i) {
        a++;
    }
}

void threadFunc2() {
    for (int i = 0; i < NUM_ITER; ++i) {
        b++;
    }
}

int main() {
    std::thread t1(threadFunc1);
    std::thread t2(threadFunc2);
    t1.join();
    t2.join();
    std::cout << "Final values: " << a << ", " << b << std::endl;
}

In this example, a and b are adjacent in memory, possibly on the same cache line. As thread 1 modifies a and thread 2 modifies b, the cache line containing both variables must be invalidated and reloaded, causing excessive cache coherence traffic and negatively affecting performance.

#include <iostream>
#include <thread>
const int NUM_THREADS = 2;
const int NUM_ITER = 10000000;

struct SharedData {
    int a;  // Modified by Thread 1
    int b;  // Modified by Thread 2
} data;

void threadFunc1() {
    for (int i = 0; i < NUM_ITER; ++i) {
        data.a++;  // This will cause false sharing with data.b
    }
}

void threadFunc2() {
    for (int i = 0; i < NUM_ITER; ++i) {
        data.b++;  // This will cause false sharing with data.a
    }
}

int main() {
    std::thread t1(threadFunc1);
    std::thread t2(threadFunc2);
    t1.join();
    t2.join();
    std::cout << "Final values: " << data.a << ", " << data.b << std::endl;
}

Similarly, in this example, data.a and data.b are adjacent in memory, possibly on the same cache line. As thread 1 modifies data.a and thread 2 modifies data.b, the cache line containing both member variables must be invalidated and reloaded, causing excessive cache coherence traffic and negatively affecting performance.

1. Use Alignment to Separate Variables #

a. Stack or Global Variables with `alignas` #

alignas(64) int a = 0;
alignas(64) int b = 0;

b. Heap Allocation with Alignment #

int* a = static_cast<int*>(std::aligned_alloc(64, 64));
int* b = static_cast<int*>(std::aligned_alloc(64, 64));

Note: std::aligned_alloc is available only in C++17 and later versions. If working with an earlier C++ version, consider using posix_memalign or similar alternatives for heap alignment.

Prevents automatic adjacent placement in memory.*

2. Use Padding to Separate Variables #

struct PaddedInt {
    int value;
    char padding[60]; // Assuming a 64-byte cache line
};

PaddedInt a;
PaddedInt b;

struct alignas(64) SharedData {
    int a;
    char padding[60];  // Padding to ensure a and b do not share the same cache line
    int b;
};

Forces a and b to be allocated in different cache lines, reducing contention.

3. Using Thread-Local Storage (`thread_local`) #

thread_local int a;
thread_local int b;

Using thread_local ensures that each thread gets its own instance of a and b, stored in thread-local storage, which prevents false sharing as the variables are not shared between threads.

Key Takeaways #

False sharing occurs when multiple threads modify adjacent variables that share the same cache line, leading to performance degradation.
The problem is the same whether the variables are independent or part of a struct.
Mitigation strategies include alignment, padding, splitting variables, and using thread-local storage.
